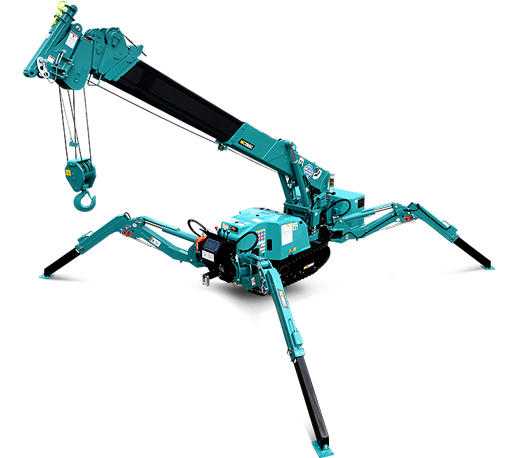

MAEDA Spider Cranes MC285C-3
| Crane Capacity | 2.82t x 1.4m |
| Max. Working Radius | 8.205m x 0.15t |
| Max. Lifting Height | 8.7m |
| Max. Reach Below Ground | -10.1m (4 falls) |
| Max. Reach Below Ground Aux Winch | -100m (single fall) |
| Outringger Max. Extended Width | (Lateral) 4,782mm x (Front) 4,718mm x (Rear) 3,990mm |
| Travel Speed | 0-2.2km/h |
| Travel Ground Preassure (MC285CRM-3) | 50.0kpa [0.510kgf/cm2] |
| Travel Ground Preassure (MC285CRME-3) | 54.3kpa [0.554kgf/cm2] |
| Engine | YANMAR 2TNV70-NMBA / Diesel |
| Engine Rated Output | 7.4.2kw/2,500rpm |
| Engine (*MC285CGRM-2) | Briggs & Stratton 3564 / Petrol |
| Engine Rated Output (*MC285CGRM-2) | 10.8kw/2,600rpm |
| Electric Motor | 5.5kw, 4P 380V |
